The difference between how its built, how you’ll install it, where the light sits, the overall projection (and more!) are all difficult to explain, so here’s Barn Light’s guide on how to make your dreams an installable reality!
Featured Product

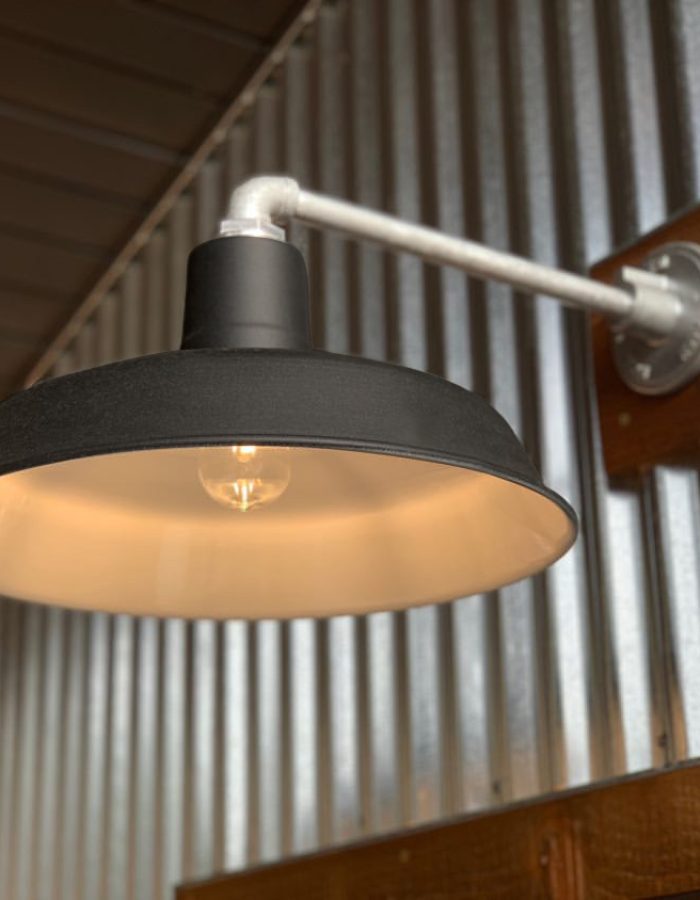

A few images to get an idea of the different types of mountings that Barn Light can provide. We’re never limited by design, rather your budget and imagination.
Need it to be perfect for your forever home? Excellent! – Design it, and we’ll manufacture it!
Our Gallery Grid
Lets talk -projection-
Our Lighting is all modular so its by no surprise that it gives a LOT of different variables, how we can better communicate the information to you using these terms.
The Original Gooseneck Barn Light with g22 Gooseneck Arm
Hardware (H)
from wall mounting, including hardware + accessories
Projection: [H] + [A]
[H] = Hardware
[A] = Accessories
Mounting Projection (MP)
from wall to light source
Projection: [H] + [A] + [M]
[H] = Hardware
[A] = Accessories
[M] = Mounting Arm
OverAll Projection (OAP)
from wall to shade edge
Projection: [H] + [A] + [M] + [S]
[H] = Hardware
[A] = Accessories
[M] = Mounting Arm
[S] = Shade (1/2 | 50%)
Image: 40cm Original w/ G22 Gooseneck
OverAll Projection (OAP)
from wall to shade edge
Projection: [H] + [A] + [M] + [S]
[H] = Hardware; 3cm
[A] = Accessories; Nil
[M] = Mounting Arm; 57cm
[S] = Shade (1/2 | 50%); 20cm
3cm + 0cm + 57cm + 20cm = 80cm Overall Projection
Lets keep on those projections... (Sample)
35cm Universal
35cm Universal Gooseneck Barn Light w/ G22 Gooseneck Arm.
[H] = 3cm
[A] = 0;
[M] = 57cm;
[S] = 17.5cm (35cm/2)
Overall Projection = 77.5cm
43cm Old Dixie
43cm Universal Gooseneck Barn Light w/ SG16 Sconce Gooseneck Arm.
[H] = 3cm
[A] = 0;
[M] = 37cm;
[S] = 21.5cm (43cm/2)
Overall Projection = 61.5cm
Common Projections
Goosenecks
PG12 Projection
SG16 Projection
G15 Projection
G22 Projection
= 30cm
= 37cm
= 47cm
= 57cm
See Hardware for [H] + [A] related information.
Common Projections
Straight Arms
G4 Projection
G14 Projection
G34 Projection +15cm Drop
G64 Projection
“Dual” Sconces / Wall Light
= 22cm
= 38cm
= 38cm
= 50cm (Light Centre, 60 OAP)
= 18cm
Sconces
Small Sconces
G3 Straight Arm
Dual Arm Sconces
Flush (Wall Mount)
= 18cm
= 18cm
= 18cm
Common Accessories
Standard Hardware
Our Wall Backing Plate [WBP] has a Projection of 5cm from the wall; the recessed female/internal accommodates 4cm (*This 4cm comes off all projections*) of tubing (Gooseneck/Straight Arm).
The additional 2cm is to account for the “Adaptor Bracket” and “Foam Gasket” to suit. Different methods can change the projection +/- 2cm depending on installation method.
For the ease of engineering =
Add 3cm for projections all for Standard E27 type Goosenecks (WITHOUT LEDs)
Standard Wall Backing Plate (E27)
HD-WBP (LED)
Combined Height
= 5cm (WBP + Gasket)
= 6cm (HD-WBP + Gaskets)
= 11cm (HD-WBP + WBP + Gaskets)
Common Upgrades
LEDs & Atomic Units & ...
When purchasing a “Fully Integrated LED” option (LMH020 version), the mounting hardware will include a HD-WBP (Heavy Duty Wall Backing Plate) free of charge to recess the LED driver.
Evidentially this adds HD-WBP another 6cm to existing projections, however as 4cm of the WBP is already recessed –
The total projection to be added is 7cm for LED Barn Lights
